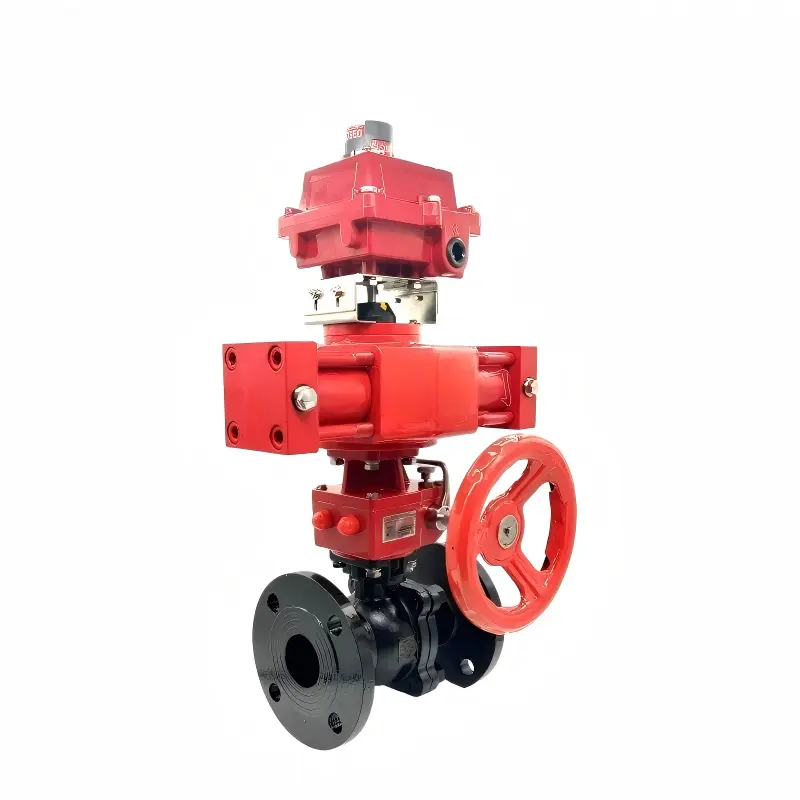

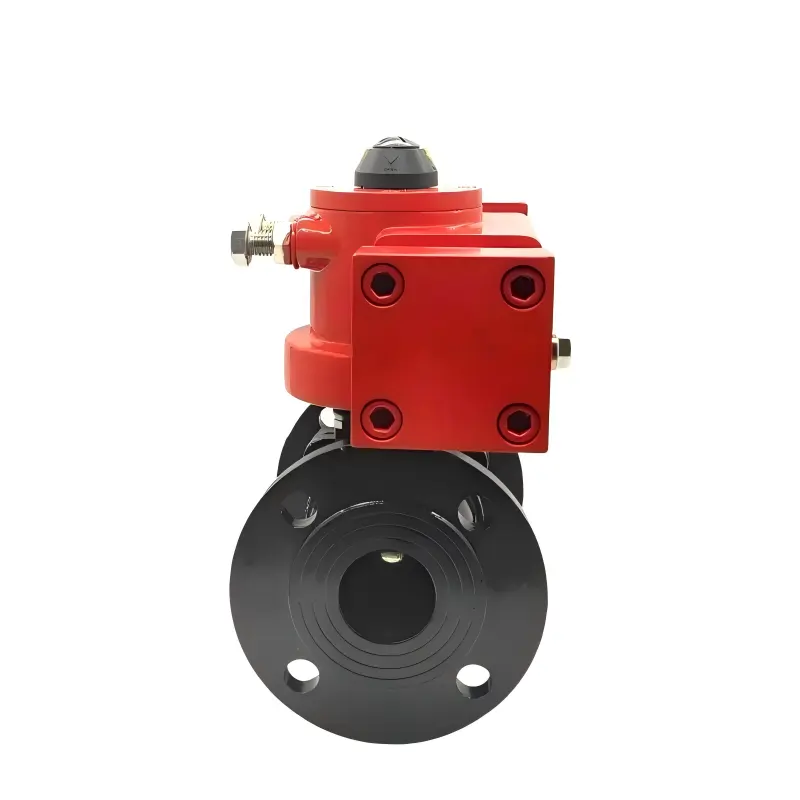

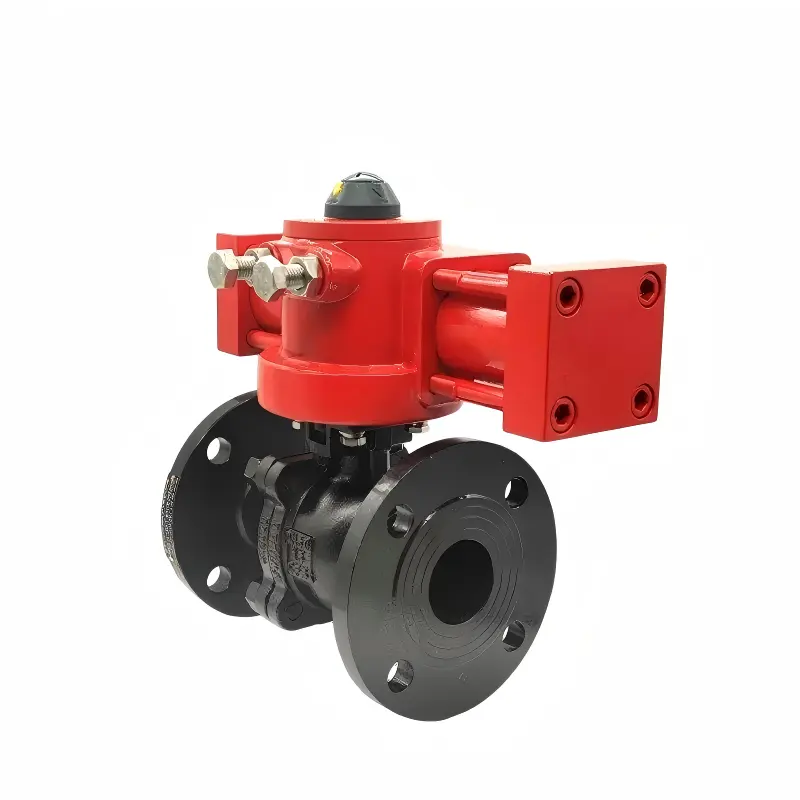

DELCO MYD-2PF Hydraulic Cast Carbon Steel Flanged Ball Valve for Water, Oil & Gas Service
The DELCO MYD-2PF hydraulic cast carbon steel flanged ball valve delivers reliable automated on/off control for water, oil, gas, and petrochemical service. Powered by the MYD-series hydraulic gear & rack actuator (2.0–16 MPa, output torque 28–25,340 Nm) with ±5° fine-tuning, manual override, and remote-ready switching, it meets API 608 / ASME B16.5 / EN 1092-1 and ISO 9001 / CE standards.
Size Range ：DN15–DN300 , PN16/PN25/PN40
Selection Manual
Key Features
The DELCO MYD-2PF pairs a WCB cast carbon steel body with a PTFE-seated ball (DN15–DN300, -29°C to 200°C) and the MYD-series hydraulic gear & rack actuator (2.0–16 MPa, 28–25,340 Nm), delivering rugged, high-pressure automated flow control for water, oil, gas, and petrochemical service — with precise ±5° control, manual override, remote-ready switching, ISO 5211 mounting, and global API 608 / ASME B16.5 / EN 1092-1 compliance.
✅Rugged WCB cast carbon steel body — High-strength carbon steel (WCB) with PTFE seat handles high pressure (up to PN40) and harsh duty from -29°C to 200°C for long service in water, oil, gas, and petrochemical lines.
✅High-torque MYD hydraulic actuator — Gear & rack transmission with integrated-piston cast carbon steel cylinder, 2.0–16 MPa supply pressure, output torque from 28 Nm (MYD32) to 25,340 Nm (MYD160) — covering DN15–DN300 lines.
✅Precise & fail-safe control — ±5° open/close fine-tuning via adjustment bolts, plus bottom-mounted manual override for emergencies in remote or hazardous areas.
✅Global-standard, remote-ready — ISO 5211 mounting, top-mounted limit/travel/proximity switches for remote operation; design per API 608, flanges per ASME B16.5 / EN 1092-1; manufactured under ISO 9001 / CE certification.
Hydraulic Actuator
Key Application Fields
-
Oil & Gas
DELCO API-certified valves ensuring safety and reliability in demanding high-pressure pipelines. -
Chemical & Petrochemical
DELCO corrosion-resistant solutions tailored for handling aggressive acids and hazardous fluids safely. -
Power Generation
DELCO solutions efficiently withstand extreme high-temperature and high-pressure steam cycles in power plants. -
Food & Pharmaceutical
DELCO sanitary valves with FDA-compliant, crevice-free designs to ensure absolute product purity. -
Water & Wastewater
Durable municipal solutions by DELCO, designed for zero leakage and long-term sustainability. -
HVAC & District Heating
DELCO valves ensure precise flow regulation to optimize energy efficiency in modern buildings.
