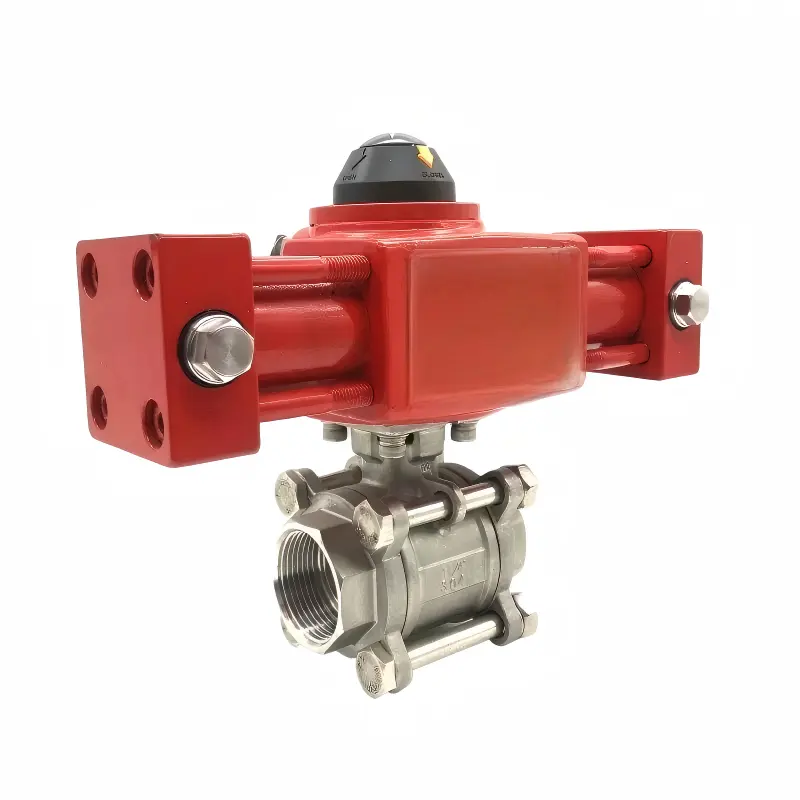

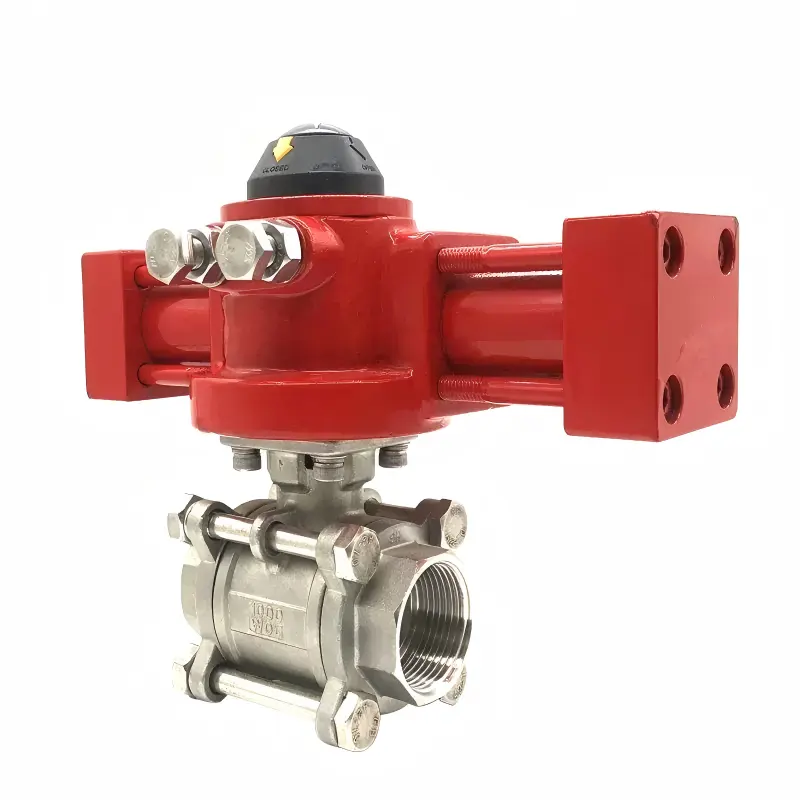

DELCO MYD-3PS Hydraulic Stainless Steel 3-Piece Threaded Ball Valve for Water, Oil, Gas & Chemical Service

✅Gear & rack transmission — Simple, reliable, and compact design delivering high output torque.

✅Cast carbon steel cylinder — Exceptional mechanical strength and durability with a clean, professional finish.

✅Integrated piston design — Engineered to withstand higher pressures and deliver greater output torque.

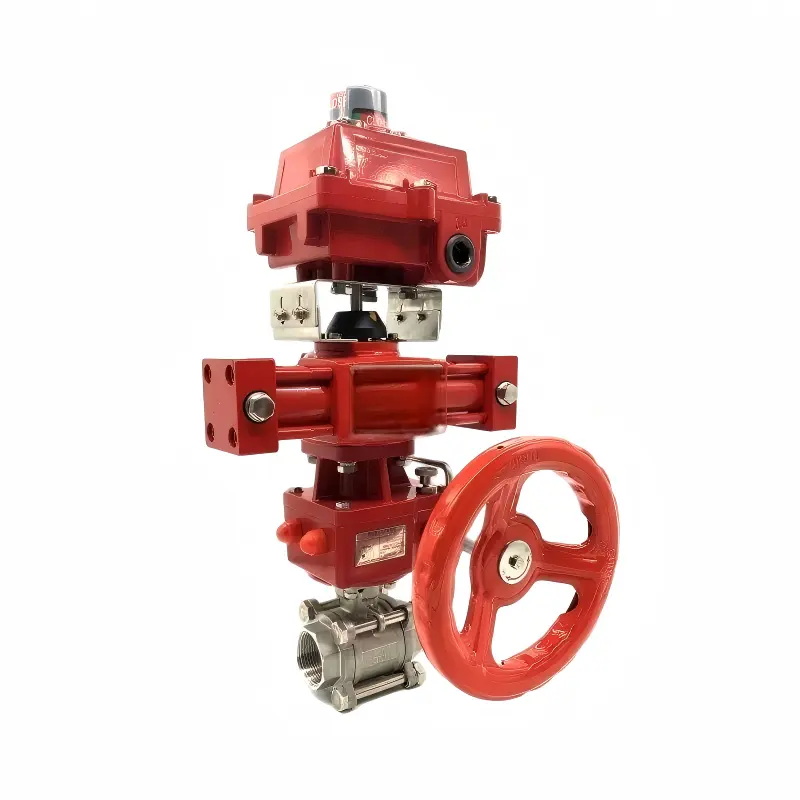

✅Optional manual override — A manual operating mechanism can be mounted at the bottom of the hydraulic cylinder for emergency operation.

✅Precise position control — Fine-tune open and closed positions within ±5° via adjustment bolts.

✅Remote control ready — Top-mounted limit switches, travel switches, and proximity switches enable remote operation.

✅ISO 5211 compliant mounting — Bottom connection ensures broad valve compatibility and easy integration.

✅Hydraulic Source Pressure: 2.0-16MPa

✅Ambient Temperature: -20-80°C, Low Temperature Type: -40-80°C, High Temperature Type: -20-120°C

✅Hydraulic Oil: Hydraulic oil with a viscosity not exceeding 40 CST. Low-temperature hydraulic oil should be used in low-temperature areas.

✅Installation: The installation environment should avoid outdoor, high-temperature, low-temperature, humid, and corrosive locations as much as possible. Otherwise, appropriate protection should be provided.
